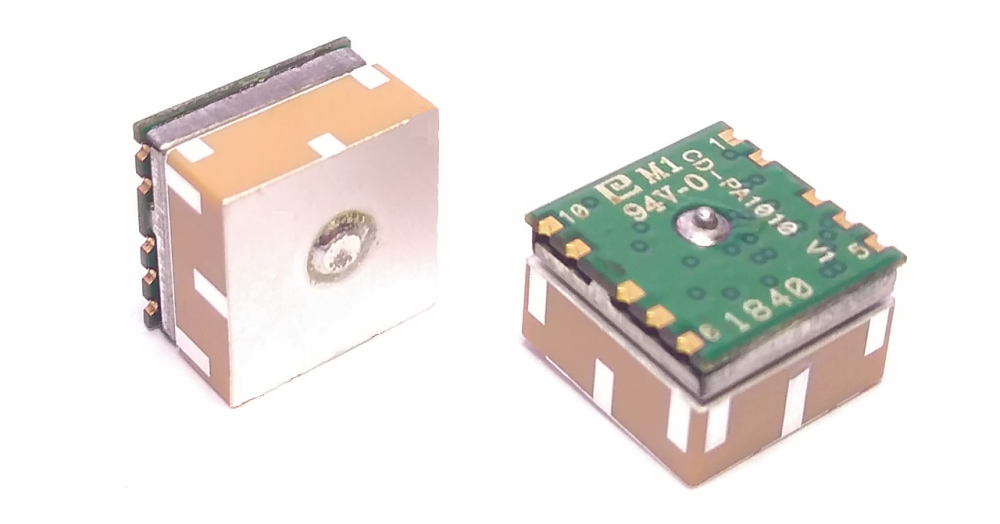

PA1010D GNSS patch antenna module
Manufacturer : CD-Top
Application:
✓ Wearable Device
✓ Asset management
✓ Handheld Device
✓ M2M application
✓ Security industry
✓ Surveillance
✓ Tablet PC/PLB/MID
Features
Built-in 10x10x4.0mm ceramic patch antenna on the top of module
⚫ Ultra-High Sensitivity: -165dBm (w/o patch antenna), up to 45dB C/N of SVs in open sky
reception.
⚫ AlwaysLocate: Intelligent Algorithm (Advance Power Periodic Mode) for power saving
⚫ EASY: Self-Generated Orbit Prediction for instant positioning fix
⚫ GPS Consumption current(@3.3V):
• Acquisition: 36mA Typical
• Tracking: 28mA Typical
⚫ High accuracy 1-PPS timing support for Timing Applications (±20ns jitter)
⚫ High Update Rate: up to 10Hz(note1)
⚫ Logger function Embedded(note2)
⚫ Supports QZSS, SBAS(WAAS, EGNOS, GAGAN, MSAS) ranging
⚫ Ultra-High Sensitivity: -165dBm
⚫ Interface: UART, I2C

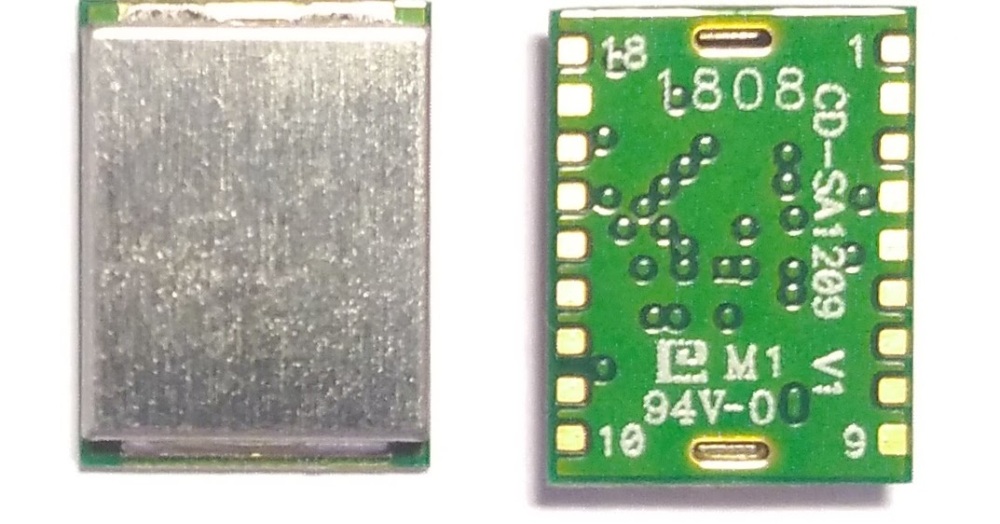

SA1209S GPS standalone module
Manufacturer : CD-Top
Application:
✓ Asset management
✓ Handheld Device
✓ M2M application
✓ Security industry
✓ Surveillance
✓ Tablet PC/PLB/MID
Features
⚫ 33 tracking/ 66 acquisition-channel GPS receiver
⚫ AGPS Support for Fast TTFF (EPOTM Enable 7 days/14 days )
⚫ AlwaysLocate: Intelligent Algorithm (Advance Power Periodic Mode) for power saving
⚫ EASY: Self-Generated Orbit Prediction for instant positioning fix
⚫ GPS Consumption current(@3.3V):
⚫ Acquisition: 20mA Typical
⚫ Tracking: 17mA Typical
⚫ High accuracy 1-PPS timing support for Timing Applications (±20ns jitter)
⚫ High Update Rate: up to 10Hz(note1)
⚫ Logger function Embedded(note2)
⚫ Supports QZSS, SBAS(WAAS, EGNOS, GAGAN, MSAS) ranging
⚫ Ultra-High Sensitivity: -165dBm
⚫ E911, RoHS, REACH compliant
⚫ CE, FCC Certification

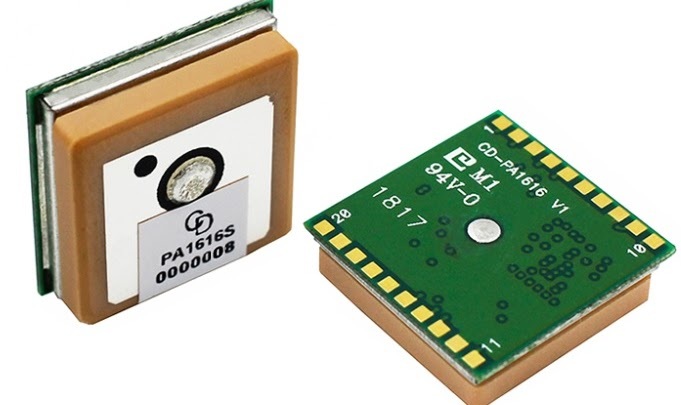

PA1616S GPS patch antenna module
Manufacturer : CD-Top
Application:
✓ Asset management
✓ Handheld Device
✓ M2M application
✓ Security industry
✓ Surveillance
✓ Tablet PC/PLB/MID
Features
⚫ Built-in 15x15x2.5mm ceramic patch antenna on the top of module
⚫ Ultra-High Sensitivity: -165dBm (w/o patch antenna), up to 45dB C/N of SVs in open sky reception.
⚫ AlwaysLocate: Intelligent Algorithm (Advance Power Periodic Mode) for power saving
⚫ EASY: Self-Generated Orbit Prediction for instant positioning fix
⚫ GPS Consumption current(@3.3V):
• Acquisition: 25mA Typical
• Tracking: 20mA Typical
⚫ High accuracy 1-PPS timing support for Timing Applications (±20ns jitter)
⚫ High Update Rate: up to 10Hz(note1)
⚫ Logger function Embedded(note2)
⚫ Supports QZSS, SBAS(WAAS, EGNOS, GAGAN, MSAS) ranging
⚫ Ultra-High Sensitivity: -165dBm
⚫ Automatic antenna switching function
⚫ Antenna Advisor function
Note 1: SBAS can only be enabled when update rate is less than or equal to 5Hz.
Note2: Some features need special firmware or command programmed by customer.
