Hook-up wires assemblies

Hook-up wires are connection for inside device . Wires with connectors assembled makes connection and disconnection flexible . Wires in bunch are more convenience for moving . There are various wires , connectors for chosen , assembly specification is upto your design . We are carrying on satisfying you .

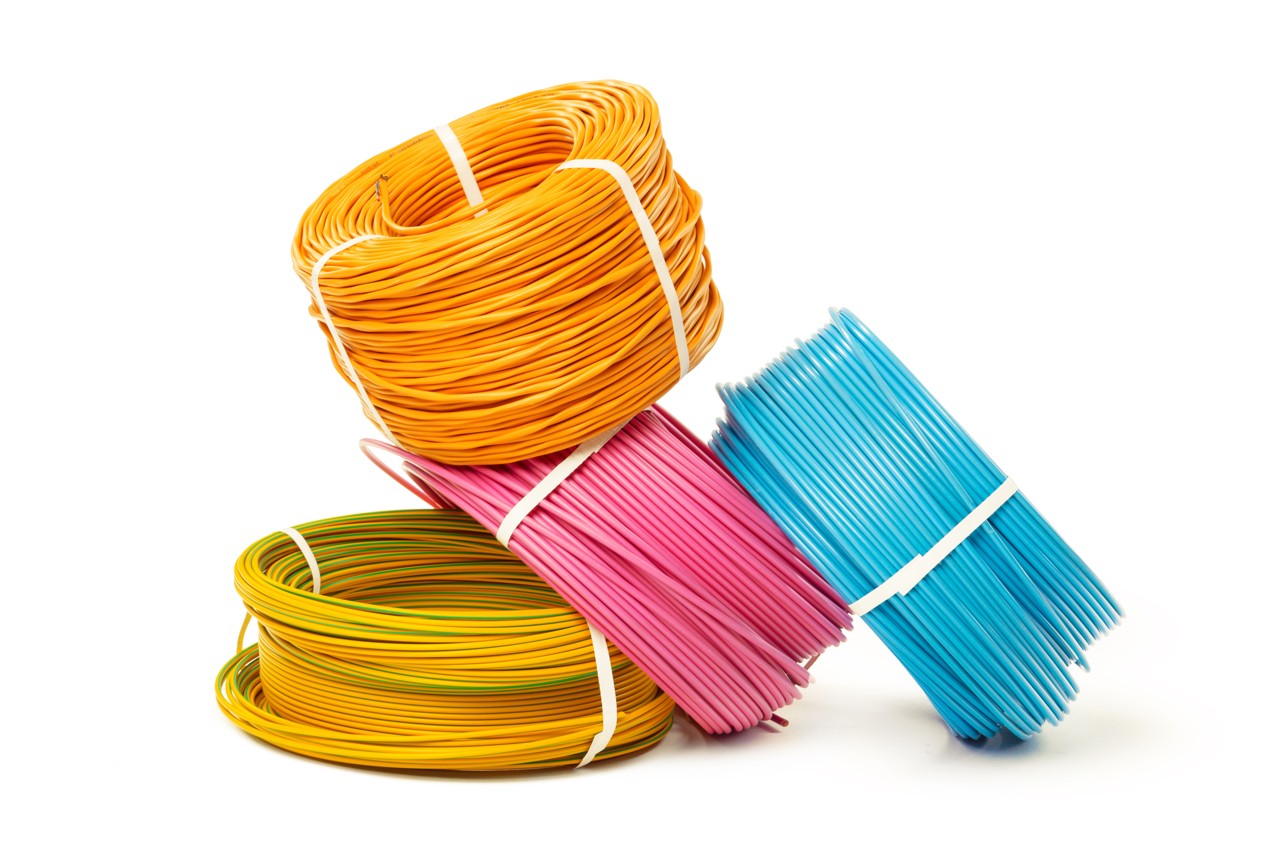

Hook-up wire


UL TEMP. °C VOLTAGE AWG STRAND TYPE Color Application
1569 105 300 2-30  STRANDED Black , white , red , yellow , green , blue , brown ,grey , orange ,purple Connection inside device
1283 105 600 2-8 STRANDED Black , white , red , yellow , green , blue , brown ,grey , orange ,purple Connection inside device
1617 105 600 10-30 STRANDED Black , white , red , yellow , green , blue , brown ,grey , orange ,purple Connection inside device
1571 80 300 10-30 STRANDED Black , white , red , yellow , green , blue , brown ,grey , orange ,purple Connection inside device
1266 90 600 4/0- 1 STRANDED Black , white , red , yellow , green , blue , brown ,grey , orange ,purple Connection inside device
1452 90 1000 12-26 STRANDED Black , white , red , yellow , green , blue , brown ,grey , orange ,purple Connection inside device
1032 90 1000 / 1200 4/0- 30 STRANDED Black , white , red , yellow , green , blue , brown ,grey , orange ,purple Connection inside device
10347 105 1500 VAC 16-28 STRANDED Black , white , red , yellow , green , blue , brown ,grey , orange ,purple Connection inside device
10269 105 1000 4/0- 26 STRANDED Black , white , red , yellow , green , blue , brown ,grey , orange ,purple Connection inside device
11627 105 2000 4/0- 30 STRANDED Black , white , red , yellow , green , blue , brown ,grey , orange ,purple Connection inside device

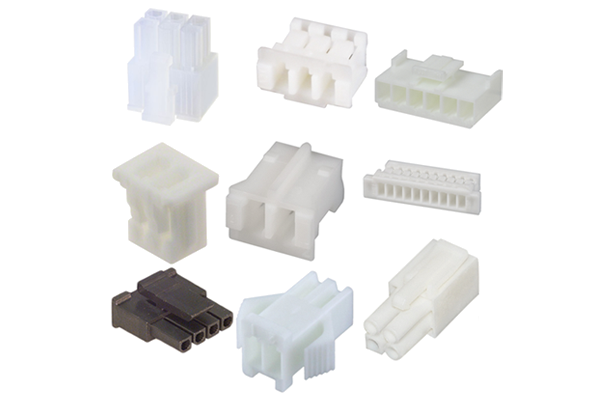

Pitch of house

0.8 mm / 1 mm /1.25 mm / 1.5 mm / 1.58 mm /
2 mm  / 2.5 mm  /  2.54 mm /
3 mm / 3.5 mm /3.68 mm / 3.96 mm /
4 mm / 4.14 mm /  4.2 mm / 4.5 mm /
5.08 mm / 6 mm / 6.2 mm / 6.35 mm

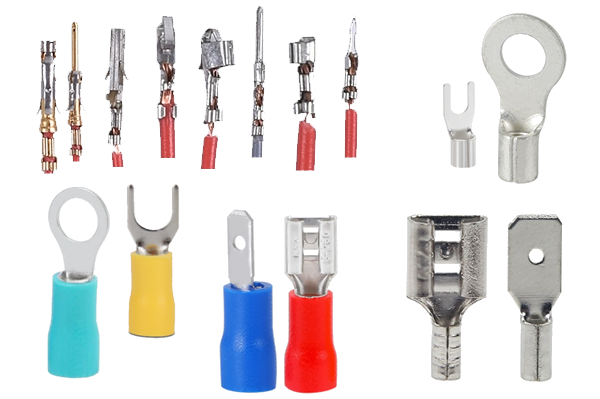

Solderless terminals

R type with none insulation / Spade R type with none insulaion / R type with insulation / Spade R typle with insulation
Quick disconnect terminal , I typle : pitch 2.8 mm / 4.8 mm , 6.3 mm
Quick disconnect terminal , L type : pitch 2.8 mm / 4.8 mm , 6.3 mm

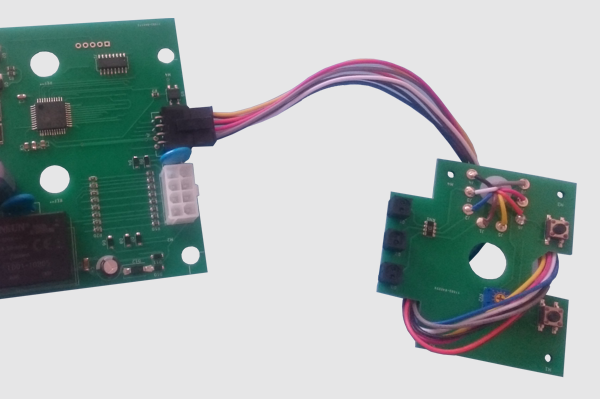

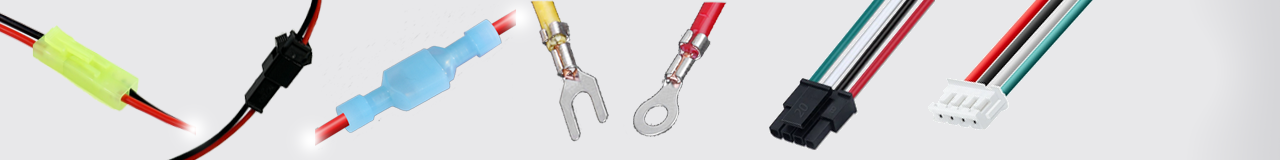

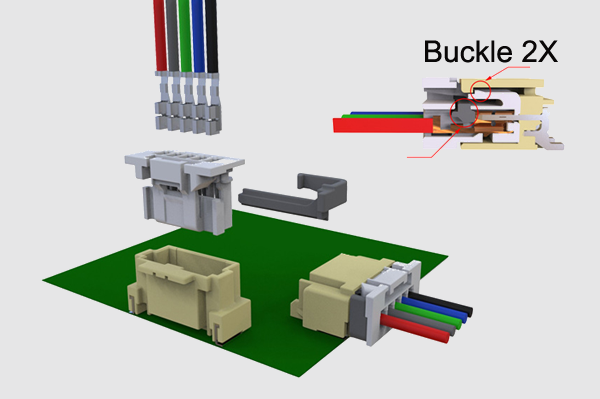

Wires with solderless terminals , other side tinned   ; Wires with terminals & house , other side 180° orentation / Reverse / Tinned / PCB ;


Asseemblies type &

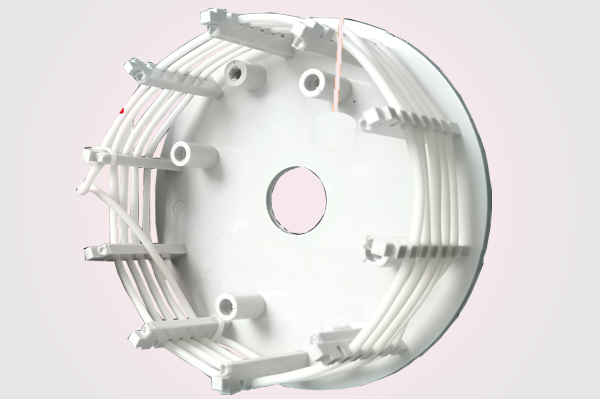

Ways of wires in bunch
Many wires needs to be in bunch for convenience use . Some wires requires to be printed with code as mark .
