Advantages
 Focus on waterproof performance in enclosure designs
Compliance with IPXX rated
Rohs material
Certification available
Consistent to target specifications across all phases
Explore fantanstic solution now |
 |
| Engineering processing |
Evaluate waterproof class |
| - 3D Modeling |
Build 3D drawing to meet application |
| - Drawing formate |
stl/stp |
| - Material available |
Rohs ABS 、PP 、POM 、Acrylic |
| - Advance |
ABS - Resilient , excellence for shape , Less hard; POM - hard & endurable ; Acrylic - nice appearance ; |
| - Surface treatment |
Glossy , matt |
| - Color |
Nature , white , gey ...etc |
| - Sealing material |
Rubber , Silicon |
| 3D products |
|
| - Features |
The ability to hold the screw is relatively weak |
| - Accuracy |
+/- 0.03 mm |
| - Application scope |
Injection box & flat plastic part |
| - Push-out membranes |
Available |
| Waterproof function testing |
IEC60529:2001 |
Consistent to every phase
 |
 |
 |

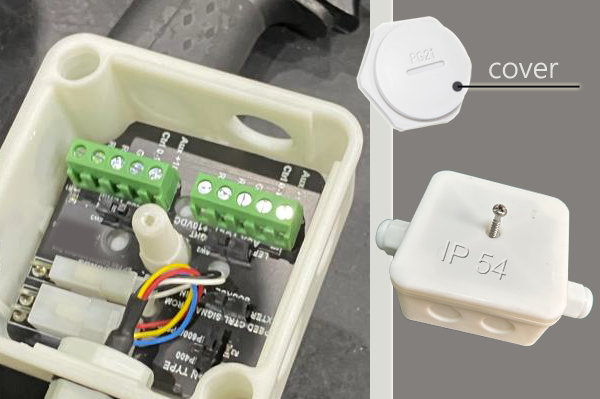

| Modeling on finished PCBA |
3D print protype to fit assembly |
Check feasibility to plastic injection |
|
|
|
| 3D print technology comparsion |
| SLA (Stereolithography) |
| It uses a laser to selectively cure liquid resin into solid plastic, layer by layer. This process creates parts with exceptional detail and resolution |
| FDM (Fused Deposition Modeling) |
| Known for its affordability, material strength, and ease of use, FDM is ideal for prototyping, functional parts, and hobbyist projects, though layer lines are often visible. |
| Accessary |

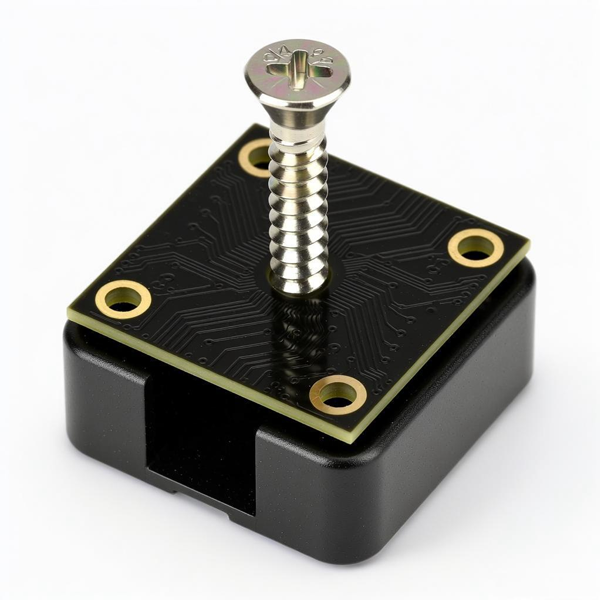

| Screw |

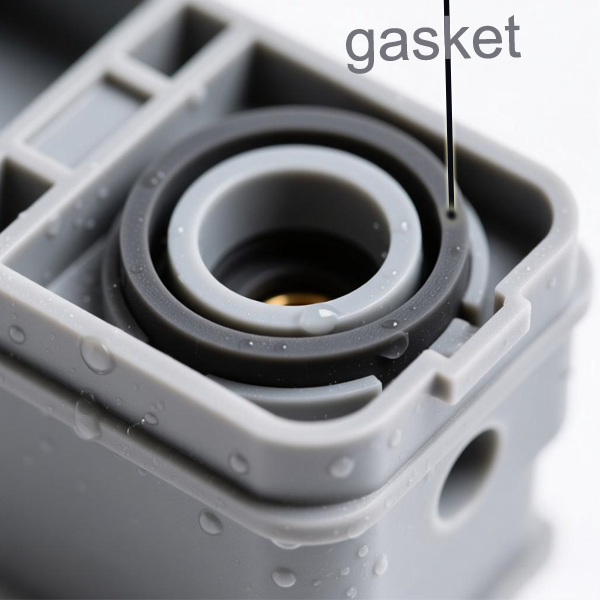

Sealing gasket |

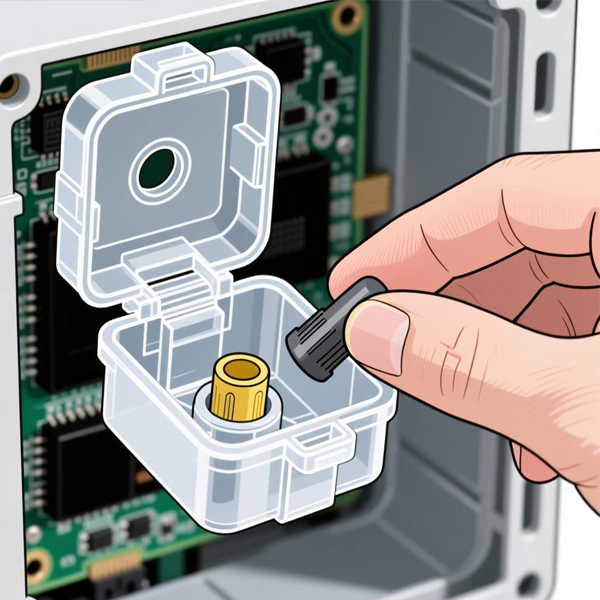

Cover |
| - 304 stainless steel |
- Silicon |
- PA |
| - Install PCBA & box |
- Block water & dust |
- Tent trough hole
|
 |
 |
 |
| Material advance |

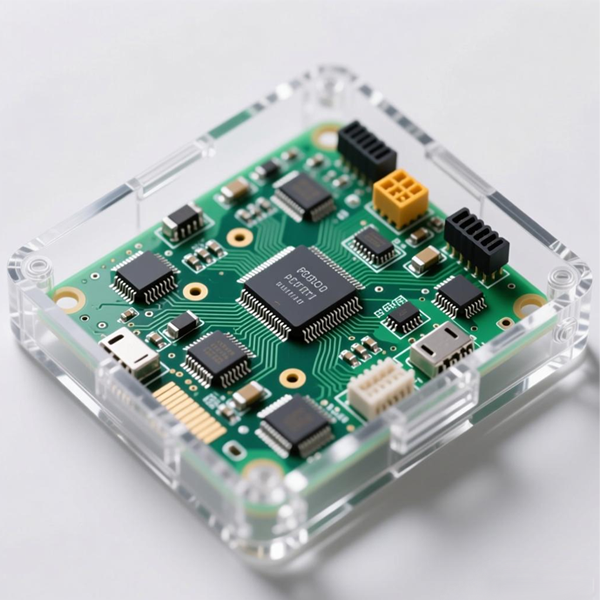

| - PCBA in Acrylic box |
 |
|
