Micro-coaxial cable harness
Functional Advantages
Signal Highway
Provides a high-speed, clean, and low-loss transmission channel, forming the performance cornerstone of the device.
Building Block
Its modular, plug-and-play nature simplifies customer supply chain management and production assembly.
Design Liberation
Enables greater freedom in product design through miniaturization and high reliability, allowing engineers to pursue thinner, higher-performance, and innovative form factors.
Application Scenarios
May we meet in these applications.
| Application Area | Core Demand & Characteristics | Typical Application Scenarios |
|---|---|---|
| Consumer Electronics | Extreme Miniaturization, High-Density Integration, Large-Scale Cost Control | Smartphones (camera/display/antenna), laptops, AR/VR devices, drones |
| Automotive Electronics | Ultra-High Reliability, Automotive-Grade Durability, Harsh Environment Adaptation | ADAS sensors (radar/camera), smart cockpit (displays), in-vehicle high-speed networks |
| High-End Communications & Data Centers | Extreme Performance, Ultra-High Frequency/Speed, Top-Tier Signal Integrity | High-end test & measurement equipment, high-speed optical transceivers, internal interconnects for premium servers/switches |
| Specialty & Industrial Fields | Special Environment Adaptability, High Customization, High Added Value | Medical devices (ultrasound probes/endoscopes), industrial equipment (precision sensors/inspection cameras) |
Application Scenario Illustration

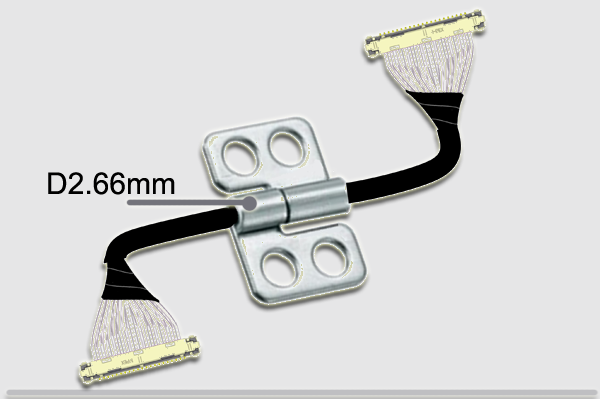

Cable and hinge assembly - Click image to learn more

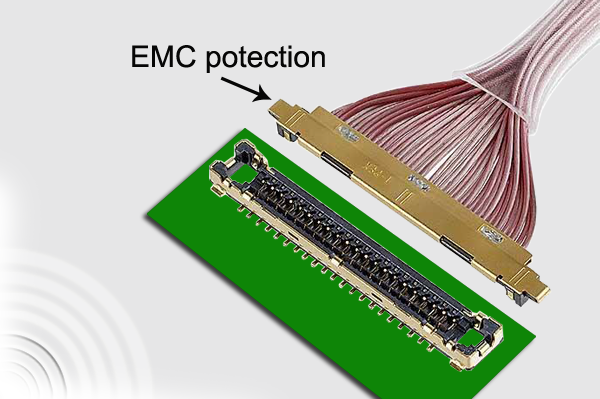

Micro wire board applications in compact electronic devices
Material Supply - Connectors
Popular Models & Specifications
Popular Models:
FI-RE21CL FI-RE31CL FI-RE41CL FI-RE51CL HD1P040MA1R6000 FI-X30HL-B FI-JZ50C-R6000
Pitch
0.25 mm, 0.3 mm, 0.35 mm, 0.4 mm, 0.5 mm
Mating Direction
Horizontal mating, Vertical mating
Material Supply - Cables

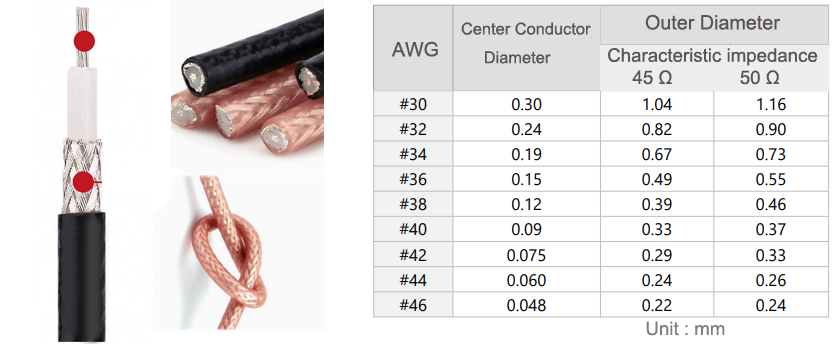

Caption 1: Layers from outer to inner: Jacket, Outer conductor(Shield), Dielectric core (Insulator), Center conductor Cross-section image (Right) - Certification: UL
Caption 2: Cable type upon outer conductor: 1. Alternative: silver, 2. Alternative: Tin
Cable Supply Features:
High-Speed Data Transmission Cable Flexible Coaxial Cable Customization
Our Supply Services
PCBA Assembly
Micro-connector to board
Cable Assembly
Micro-connector to cable
PCBA & Cable Mixed Assembly
Integrated assembly services
Case Studies

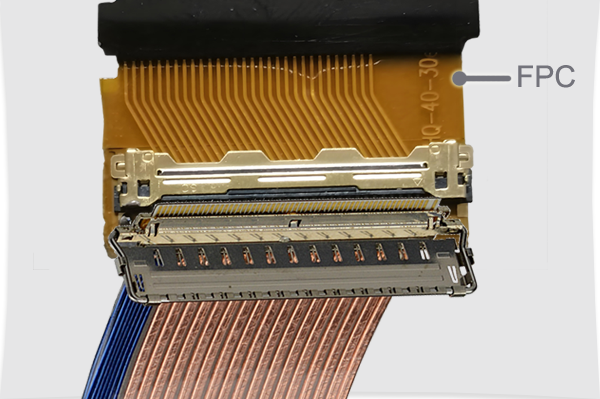

Harness soldered on FPC

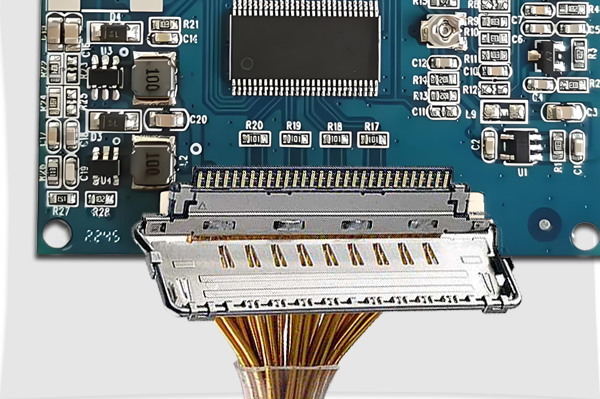

Connector soldered on PCB board

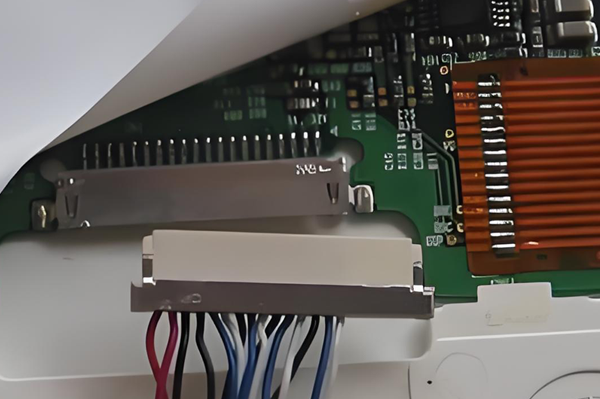

Harness and PCBA plug-and-play connection
