Students PCBA
Shiny aspect : Protect PCBA and connect PCBA

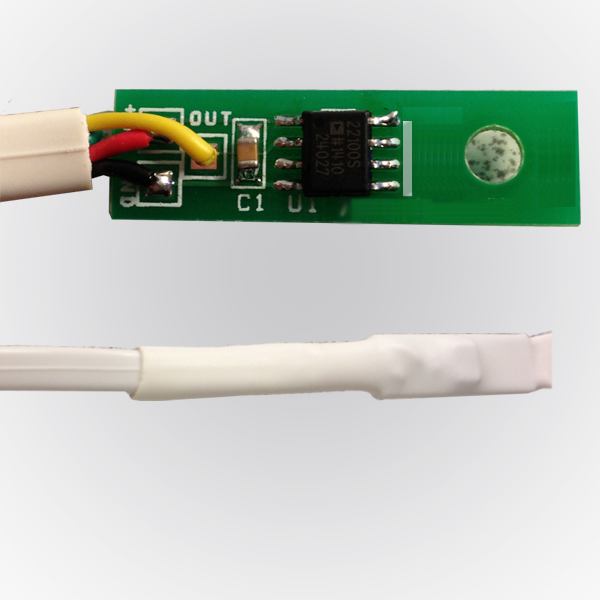

Style A : One side of PCB with SMD components , PTH components assembled , then have PCBA wrapped with heatshrink tube . It enable PCBA to be protected from damage . Sometimes can have the position of the connectors to be pierced for cables connection .

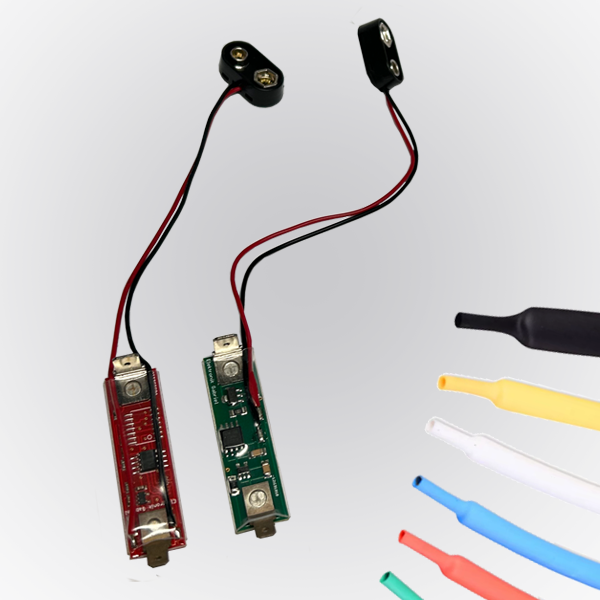

Heat-shrink tube description
Agency Approvals:
UL Recognized, File E-39100, at 600 volts maximum @ 125°C CSA Certified,
CSA LR38227, at 600 volts maximum @ 125°C
RoHS and REACH information
Color :
Black ,red, blue, yellow, green, clear , white
Hardware parts
- Ready parts , small size 45°,90°, 180°
- Package SMD PTH

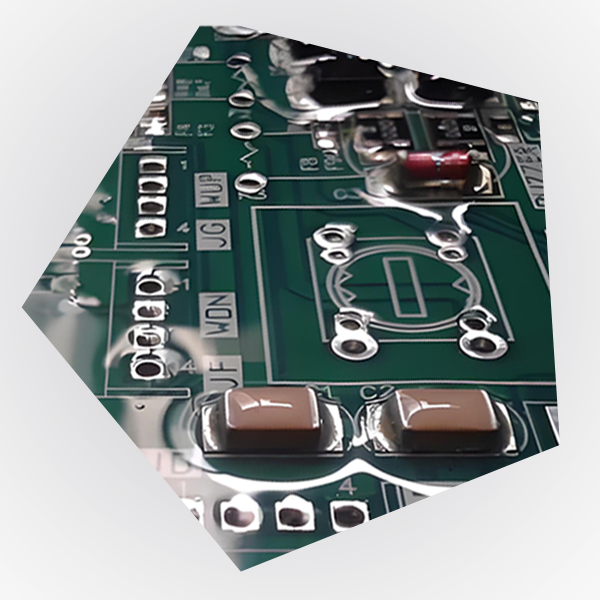

Style B : Conformal coating enables PCBA to resist damage from moisture and oxidation .
Thick : 50 um
Class 1 : Resist scratch
Class 2 : Build segragation between PCBA and air .

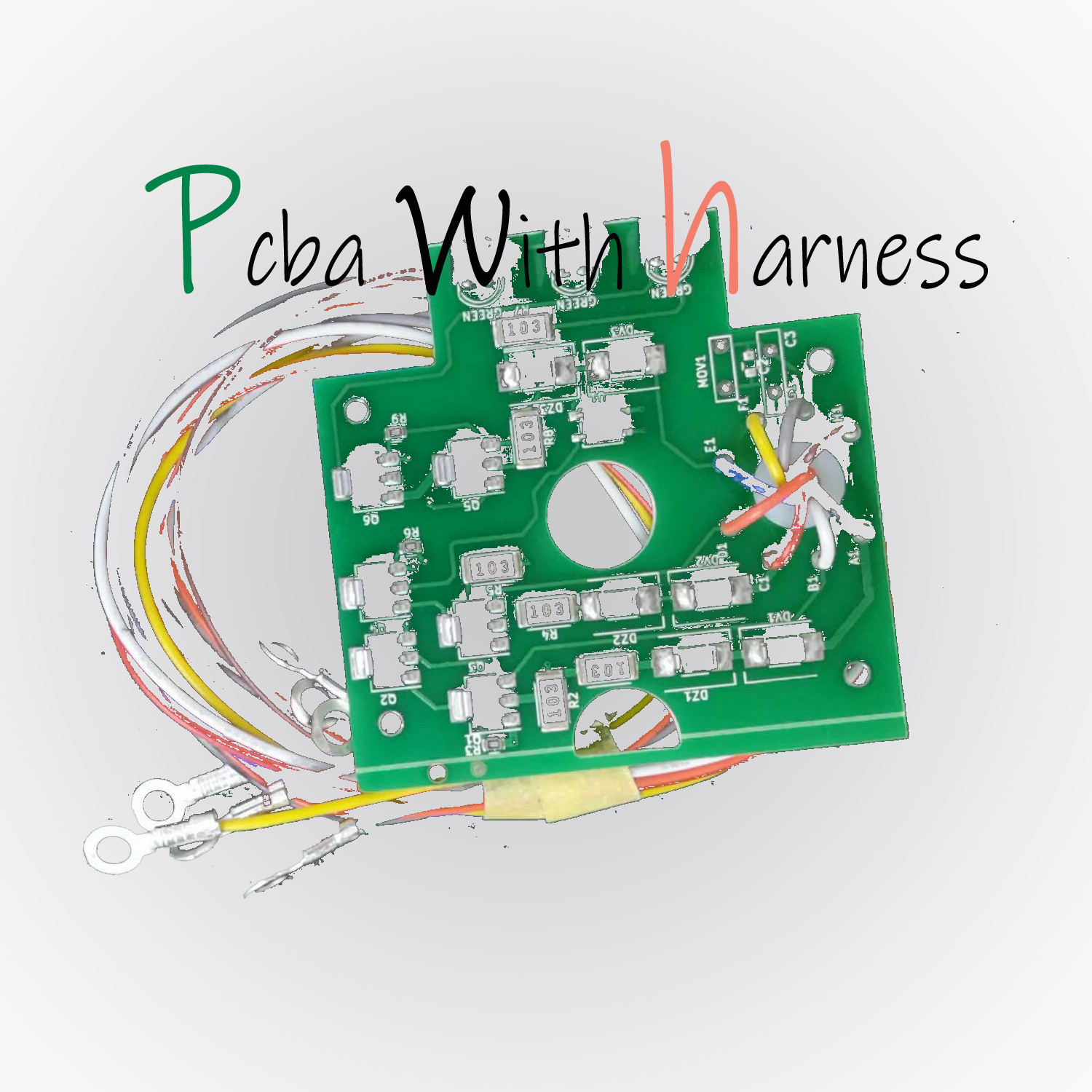

Style C : PCBA connection with wires .
Hook- up wires UL standard : 1015 , 1007 , 1569
Color : white , blue , purple , green , yellow , grey , brown , black ... etc
Solderless terminal : Ring tongue , Spade tongue , quick disconnect .
Style A : One side of PCB with SMD components , PTH components assembled , then have PCBA wrapped with heatshrink tube . It enable PCBA to be protected from damage . Sometimes can have the position of the connectors to be pierced for cables connection .
Heat-shrink tube description
Agency Approvals:
UL Recognized, File E-39100, at 600 volts maximum @ 125°C CSA Certified,
CSA LR38227, at 600 volts maximum @ 125°C
RoHS and REACH information
Color :
Black ,red, blue, yellow, green, clear , white
Hardware parts
- Ready parts , small size 45°,90°, 180°
- Package SMD PTH
Style B : Conformal coating enables PCBA to resist damage from moisture and oxidation .
Thick : 50 um
Class 1 : Resist scratch
Class 2 : Build segragation between PCBA and air .
Style C : PCBA connection with wires .
Hook- up wires UL standard : 1015 , 1007 , 1569
Color : white , blue , purple , green , yellow , grey , brown , black ... etc
Solderless terminal : Ring tongue , Spade tongue , quick disconnect .
UL | TEMP. °C | VOLTAGE | AWG | STRAND TYPE |
1007 | 80 | 300 | 30 | |
1007 | 80 | 300 | 26 | STRANDED |
1007 | 80 | 300 | 24 | STRANDED |
1007 | 80 | 300 | 22 | STRANDED |
1007 | 80 | 300 | 20 | STRANDED |
1007 | 80 | 300 | 18 | STRANDED |
1007 | 80 | 300 | 16 | STRANDED |
1569 | 105 | 300 | 22 | STRANDED |
1569 | 105 | 300 | 20 | STRANDED |
1569 | 105 | 300 | 18 | STRANDED |
1569 | 105 | 300 | 16 | STRANDED |
1569 | 105 | 300 | 14 | STRANDED |
1569 | 105 | 300 | 12 | STRANDED |
1569 | 105 | 300 | 10 | STRANDED |
1015 | 105 | 600 | 26 | STRANDED |
1015 | 105 | 600 | 24 | STRANDED |
1015 | 105 | 600 | 22 | STRANDED |
1015 | 105 | 600 | 20 | STRANDED |
1015 | 105 | 600 | 18 | STRANDED |
1015 | 105 | 600 | 16 | STRANDED |
1015 | 105 | 600 | 14 | STRANDED |
1015 | 105 | 600 | 12 | STRANDED |
1015 | 105 | 600 | 10 | STRANDED |
UL 1015 | AWG10-AWG26 |
UL 1007 | AWG16-AWG30 |
UL 1569 | AWG10-AWG22 |
