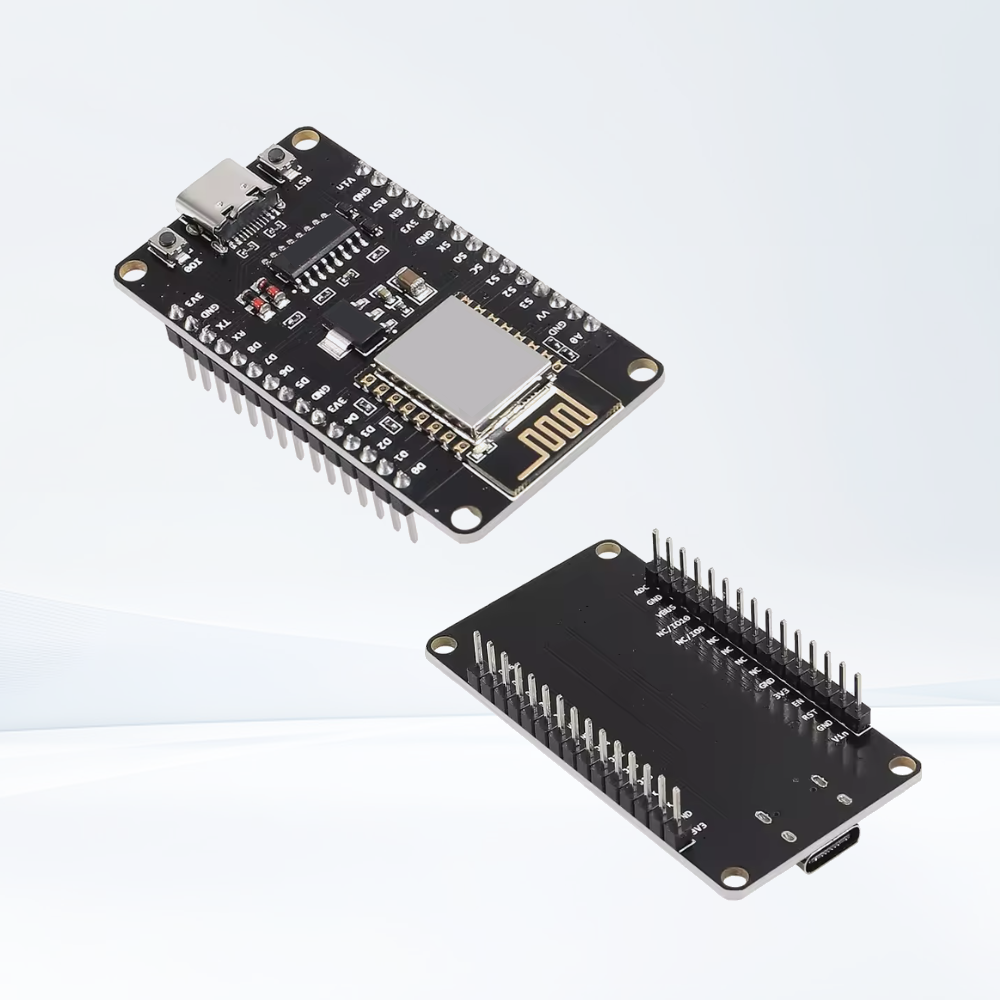

Description
802.11b/g/n
Available : Tensilia L106 ultra-low power consumption 32-bit micro MCU, main frequency supporting 80
Available : 10bit high-precision ADC
Available : TCP/IP protocol stack
Available : TR switch, balun, LNA, power amplifier and matching network
Available : PLL, voltage regulator and power management components,+18dBm A-MPDU, A-MSDU aggregation and 0.4s protection interval in 802.11b mode
Available : AT local & cloud OTA upgrade
Available : STA/AP/STA & AP
Available : Smart Config functions HSPI, ｜ ART, I2C, I2S, IR Remote Control, PWM, GPIO deep sleep holding current 20 υ A. Turn off current is < 5uA
Wi Fi @ 2.4GHz, supporting WPA/WPA2 security mode
Power consumption in standby mode is less than 1.0mW (DTM3)
PCBA Service
We offer this module at sample quantity for better price .
PCBA order has to be placed with us .
### **Promotional Strategy**
**1. Tiered Pricing Model**
| Module QTY | Price/Unit | Free PCB Coupon |
|------------|------------|------------------|
| 1–99 | $X.XX | - |
| 100–500 | $X.XX | 5㎡ FR-4 PCB |
| 500+ | $X.XX | 10㎡ + DFM Review|
**2. Cross-Sell Pop-up**
*"Customers who bought this Wi-Fi module also purchased:*
- 4-layer impedance-controlled PCBs
- SMT assembly services for XXXX "
[View Bundles]
