DFM (Design for Manufacturing)
"Give me a place to stand, and I shall move the earth." — Archimedes (Ancient Greek mathematician and physicist)
Service Definition
DFM Service Definition
Design for Manufacturing - A professional engineering service that optimizes product designs for efficient, cost-effective, and reliable manufacturing.
Value & Significance
Guides customer design, reduces design risks, and enhances production efficiency by identifying and resolving potential manufacturing issues at the design stage.
Service Details
Service Timing
Available both before order placement (for design optimization) and after order placement (for manufacturing validation).
Service Method
Primarily conducted via email communication, with detailed reports and recommendations provided in digital format.
Service Nature
Paid professional service provided by experienced engineers with specialized manufacturing expertise.
Service Scope
Covering multiple manufacturing domains: PCB, PCBA, Harness, and Plastic Injection molding.
Service Qualifications
Conducted by senior engineers with extensive industry experience and technical expertise.
Service Content
Core Service Components
- Design Drawing Standard Check - Comprehensive review against industry and manufacturing standards
- BOM Supply Chain Check - Verification of component availability and sourcing options
- BOM Substitutability Recommendations - Suggestions for alternative components to optimize cost and availability
- Sample Provision - Supply of physical prototypes for validation when required
DFM Software Tools
Genesis2000
Our company utilizes Genesis2000 software to perform detailed analysis of customer PCB designs. As a solutions provider, our DFM process is not an automated online service but rather a manual, expert-driven analysis conducted by senior engineers.
The Genesis2000 software enables our engineers to:
- Conduct thorough design rule validation with engineering oversight
- Perform in-depth manufacturing constraint analysis
- Generate detailed DFM reports with expert recommendations
- Visualize potential manufacturing issues for customer review
Unlike fully automated DFM systems, our approach combines software tools with human engineering expertise to provide customized solutions that address the specific needs of each project.

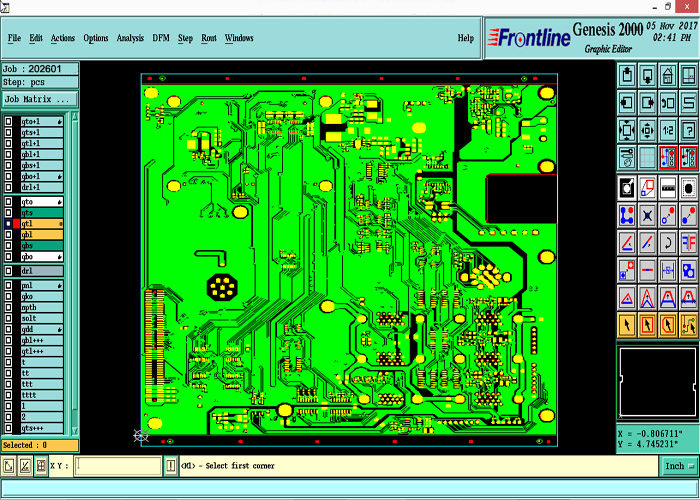

Genesis2000 software for analyzing PCB designs
Design Standards & Specifications
Core Standards System Framework
| Standards Category | Core Standard Examples | Primary Function & Positioning |
|---|---|---|
| Foundation & Generic Design Specifications | IPC-2221 Series (e.g., IPC-2221C Generic Standard, IPC-2222 for Rigid Boards) | The "constitution" for all PCBA design. Specifies universal requirements for layout, routing, clearances, etc. Serves as the foundation for all other specialized standards. |
| Base Material & Process Performance Specifications | IPC-4101 (Base Materials), IPC-6012 (Qualification & Performance for Rigid Boards) | Defines what materials to use and what constitutes an acceptable quality level. Specifies laminate properties and the final product's performance and acceptance criteria. |
| Design for Manufacturability/Assembly (DFM/DFA) | Typically derived from standards like IPC-2221 | The bridge connecting design and manufacturing. Includes specific rules for trace width/spacing, annular ring, component spacing, fiducial marks, etc. |
| Acceptability Standards | IPC-A-600 (Acceptability of Printed Boards), IPC-A-610 (Acceptability of Electronic Assemblies) | The "yardstick" for judging quality. Provides consistent criteria for manufacturers and customers to assess the quality of bare PCBs and assembled boards. |
| Process & Material Standards | IPC-J-STD-001 (Soldering Requirements), IPC-SM-840 (Solder Mask) | Specify how to produce, covering quality requirements for specific processes and materials like soldering, cleaning, and conformal coating. |
Two Key Dimensions in Design
1. Product Classification (Product Classes)
PCBA products are divided into three classes based on reliability requirements. The higher the class, the greater the design margin required and the fewer defects permitted:
- Class 1 - General Electronic Products: Consumer electronics, ordinary toys, etc. Must meet basic functionality.
- Class 2 - Dedicated Service Electronic Products: Communication equipment, commercial instruments, etc. Require high reliability and long service life.
- Class 3 - High-Performance Electronic Products: Aerospace, life support systems, etc. Require extremely high reliability, and downtime is not permitted.
2. Design for Manufacturability (DFM) Core Checklist
For the complete DFM checklist, please refer to the Technology section in the website navigation.
Our DFM service reviews designs against comprehensive checklists that include:
- Compatibility with specific manufacturing processes
- Material selection and availability considerations
- Assembly sequence and tooling requirements
- Cost optimization opportunities
- Risk mitigation strategies for production
