Design to Assembly : Complete Solution
Addressing the three major challenges in electronic product development through predictive manufacturing intelligence and collaborative design
Problems & Risks
The three major challenges in electronic product development from design to production:
Uncontrolled Development Cycle & Cost
Frequent design iterations, extended development timelines, and budget overruns caused by downstream manufacturing issues that were not anticipated during the design phase.
Product Quality & Reliability Risks
Hidden design flaws that lead to field failures, increased return rates, and damage to brand reputation, often discovered only after mass production or product launch.
Poor Manufacturability & Mass Production Difficulties
Designs that are theoretically sound but practically difficult or costly to manufacture consistently at scale, leading to low yield rates and production bottlenecks.
These challenges ultimately prevent projects from realizing their intended functional value and business objectives.
Our Professional Services & Solutions
Core Concept
Analogous to web development: while clients focus on implementing product functional value at the "front-end", we provide the essential "back-end computational power" needed to realize that value efficiently and reliably.
We act as your external manufacturing intelligence cloud, supplying the computational resources and predictive analytics that are typically beyond the scope of design-focused engineering teams.
Practical Implementation: Structure-First, Collaborative Design
Definition: Requiring clients to provide structural documentation during the layout phase, with our simultaneous involvement in the workflow.
Operational Model: Early integration of manufacturing intelligence into the design process through parallel collaboration between electronic design, mechanical design, and manufacturing engineering teams.
Front-end Functional Design & Back-end Manufacturing Computation Model
Design Consideration 1: PCBA Assembly Principles

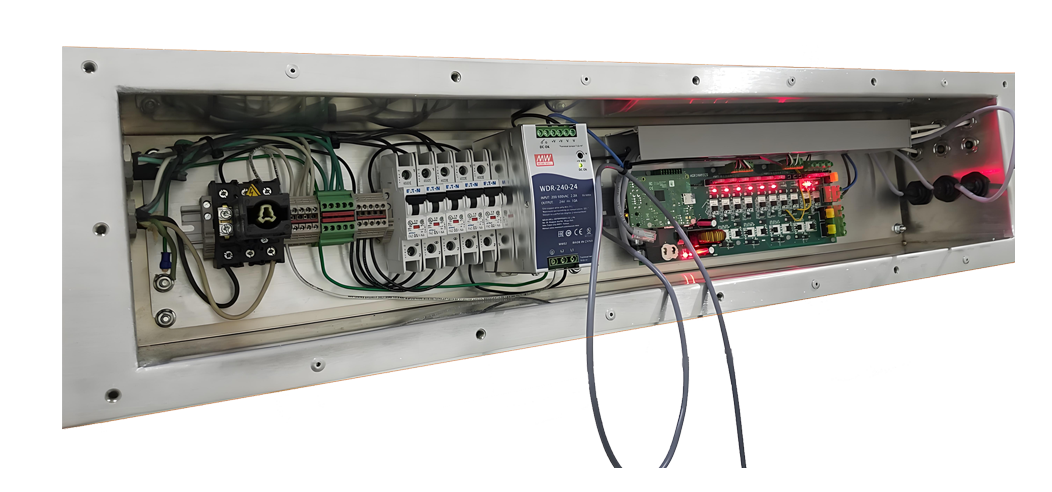

Practical Example from Product Manufacturing Experience
Based on extensive manufacturing experience, we have systematized PCBA assembly considerations into five key dimensions:
| Consideration Dimension | Key Objectives | Specific Design Rules & Checklists |
|---|---|---|
| 1. Mechanical Fit | Ensure the PCB can be precisely and securely installed into the enclosure without interference or stress. |
a. Dimensions & Tolerances: Reserve a unilateral assembly clearance of 0.2-0.5 mm. Check all components in keep-out zones (e.g., under cover protrusions). b. Positioning & Fixation: Use standoffs/screw holes (hole diameter 0.2-0.5 mm larger than the screw) and dowel pins/holes (slightly tight fit). c. Stress & Vibration: Place large/heavy components (e.g., large capacitors, heat sinks) close to screw mounting points to avoid cantilevered stress. |
| 2. Thermal Management | Establish efficient heat dissipation paths to control operating temperatures of core components. |
a. Thermal Interface Materials (TIM): Plan for thermal pads/grease areas between ICs and the enclosure, reserving compression space (0.5-1.5 mm). b. Airflow & Ventilation: Align ventilation holes with heat-generating components; intakes low, exhausts high. Ensure airflow is not blocked by cables. c. Enclosure Material: Prioritize metal enclosures or add local metal heat spreaders for products with high thermal loads. |
| 3. EMC & Grounding | Suppress electromagnetic radiation and interference to meet certification requirements. |
a. Shielding Design: Plan installation surfaces and compression areas for EMI gaskets, conductive foam, or shields. b. Low-Impedance Grounding: Design multiple low-inductance grounding vias from shielding structures and metal enclosures to the system ground plane. c. Interface Filtering: Incorporate filtering circuits at cable entry/exit points (e.g., power, USB) or use connectors with built-in filters. |
| 4. Connectors & Interfaces | Ensure accurate positioning and reliable connections for external interfaces. |
a. Positional Accuracy: Unilateral clearance between connectors and enclosure openings is typically ≤ 0.3 mm. Structural openings should be larger than the connector but include guide bevels or rubber seals for dust/ESD protection. b. Insertion/Extraction Stress: Secure the PCB with screws near connectors (especially USB, Ethernet) to prevent solder joint cracking from frequent mating. |
| 5. Cabling & Assembly | Simplify production assembly processes and prevent human error. |
a. Cable Routing: Plan locations for cable trenches or clips to secure cables, avoiding pressure on components or blockage of airflow. b. Mistake-Proofing (Poka-yoke): Use keyed connectors or color-coded sockets for polarity-sensitive board-side connectors. c. Serviceability: Ensure access to major ICs and test points without complete disassembly of the enclosure. |
Design Consideration 2: SMT Assembly Principles
Rational arrangement of component placement and orientation on PCB:
Experience Sharing:
1. Solder Process Details
For fine-pitch ICs and similar components, it is necessary to design solder mask dams between pads to prevent solder bridging. Simultaneously, the stencil aperture dimensions must be precise to ensure appropriate solder paste volume and form reliable solder joints.
2. Fiducial Marks for Pick-and-Place Machines
Design optical fiducial marks (Fiducial Mark) for pick-and-place machines, especially for boards with fine-pitch components. This is fundamental for achieving high-precision component placement.
Core Content: Business-Level Design Considerations
| (Technical Level) | (Business & Strategic Level) | Value Realization |
|---|---|---|
| Calculating "Is component spacing sufficient?" | Calculating "Production line throughput & yield rate" | "We adjust this layout to increase pick-and-place machine efficiency by 15%, directly impacting your production cycle time and marginal costs at future volumes of millions of units." |
| Calculating "How to design ventilation holes?" | Calculating "Product return rates & after-sales costs" | "We optimize this thermal path to reduce peak operating temperature of the core component by 10°C. According to reliability models, this is expected to reduce early failure rates of this component by an order of magnitude, directly protecting your brand reputation and reducing after-sales investment." |
| Calculating "Enclosure mounting boss locations" | Calculating "Supply chain & inventory risks" | "We recommend standardizing these two different-value connectors to the same model. Although BOM cost increases slightly, it reduces a sole-source component, disperses supply chain risk, and may yield better pricing due to consolidated purchasing volume, resulting in lower total cost of ownership in the long term." |
Our Value Proposition
Predictive Computational Power
We employ manufacturing big data and 'detail algorithms' accumulated from the production side to calculate these hidden business costs in advance for you.
Risk Mitigation at Design Stage
Our services help you systematically resolve potential production risks and after-sales issues during the design phase, transforming uncertainty into predictable outcomes.
From Technical Detail to Business Impact
We translate technical design choices into quantifiable business metrics—cost, yield, reliability, and time-to-market—enabling data-driven decision making.
Ultimate Value Statement
"When you're calculating functionality, we're already calculating manufacturing reliability and commercial success for you."
We provide the manufacturing system intelligence that transforms innovative designs into reliably producible, commercially successful products.
