Aluminum @ PCBA, Thermal Management

The Physics of Heat Dissipation in PCBA

According to the law of energy conservation, the portion of input electrical energy not converted into useful work (loss) is almost entirely transformed into heat energy. If this heat cannot be dissipated in time, the PCBA temperature will continue to rise, leading to functional issues. Therefore, thermal management is not an "option" but a mandatory physical requirement for maintaining normal operation of electronic systems.

Typical Heat Dissipation Path:
Heat Source (Chip) → Thermal Grease/Pad (Interface Filling) → Aluminum Heatsink (Heat Spreading) → Air (Final Exchange)

Thermal Solution Material Selection

Selecting the right material is crucial for building an efficient thermal path. The following are the three most common interface material choices:

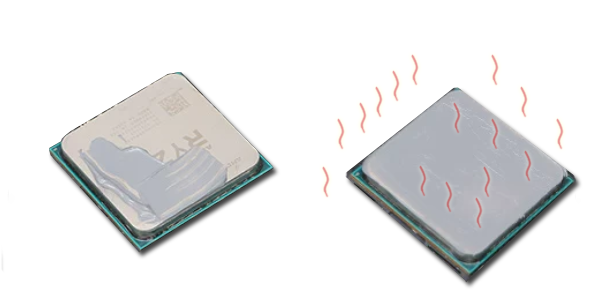

Thermal Grease Application

1. For Ultimate Performance: Aluminum Heatsink + Thermal Grease

Offers excellent thermal conductivity, perfectly fills microscopic gaps, and achieves almost gap-free heat transfer.

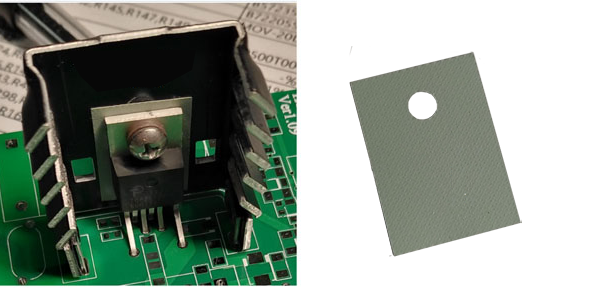

Thermal Pad Application

2. For Convenience & Insulation: High-Conductivity Silicone Pad

Ideal for pre-installation, or where vibration damping and electrical insulation are needed. Compressible to adapt to different gaps.

Thermal Tape Application

3. For Low Power & Easy Installation: Thermal Double-Sided Tape

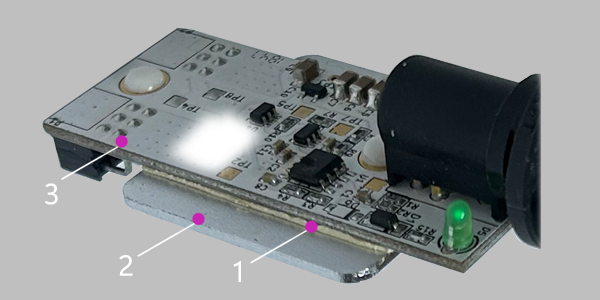

Suitable for components with low heat generation requiring simplified installation (adhesive fixation). 1 Tap 2 Aluminum plate 3 PCBA

Application Scenarios

The following are typical thermal management solutions for high-power components:

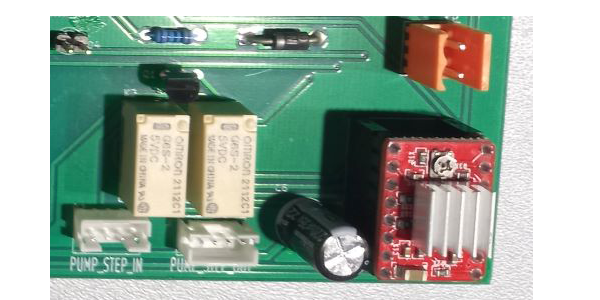

CPU/GPU Cooling

CPU/GPU Chips

Best Practice: Use an aluminum channel heatsink paired with thermal grease (for performance) or a high-conductivity silicone pad (for maintainability and insulation) as the interface material.

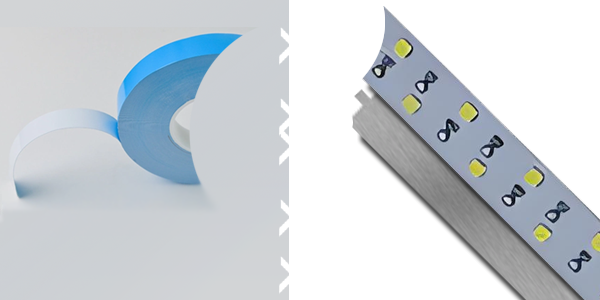

LED Cooling

High-Power LED Beads

Core Solution: Aluminum substrate paired with a large aluminum heatsink. The interface between them can be chosen based on the process: use thermal double-sided tape for strong bonding when thermal resistance requirements are not extreme, or use thermal grease for lower thermal resistance.

Characteristics of Aluminum Heatsink Shapes

Most standard parallel fin designs are mass-produced via extrusion, offering the best cost-effectiveness. More complex shapes may require die-casting, milling, or folding processes, resulting in higher costs.

Shape Category Typical Appearance Description Core Features & Advantages
Parallel Straight Fins Long, straight fins arranged in parallel. The most common type. Mature process (easy to extrude), lowest cost, well-defined airflow resistance direction.
Pin/Radial Fins Cylindrical pin-shaped fins or fins arranged radially from the center. Three-dimensional heat dissipation, uniform in all directions without directed airflow; large surface area per unit volume.
Wavy/Serrated Fins Straight fins modified into a wavy or serrated shape. Disrupts the air boundary layer, enhances turbulence, improves heat exchange efficiency; larger effective area under the same projected area.
Circular/Ring Fins Arranged in rings around a cylindrical base. Fits tightly with cylindrical heat sources (e.g., heat pipes), compact shape.
Custom-Shaped Fins Irregular shape, fully customized to the product space. Maximizes the use of irregular space for precise heat dissipation.
