Home > Case > Cables Family > Hook-up wire to board > Smiery-Wire to boards 26/24/22/20/18AWG UL1007 jumper wire
  • Smiery-Wire to boards 26/24/22/20/18AWG UL1007 jumper wire
1/1
  • Smiery-Wire to boards 26/24/22/20/18AWG UL1007 jumper wire

Smiery-Wire to boards 26/24/22/20/18AWG UL1007 jumper wire

SKU: SKU20240708001
One smiery can be obtained from a 5 square meter circuit board, and one smiery can be used to offset 50 USD
0.0 (0 Reviews)
0 Sold
$0.00 $55.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Length:
    0-20
    20-40
    40-60
    60-80
    80-100
  • Guage:
    26 AWG
    24 AWG
    22 AWG
    20 AWG
    18 AWG
    Flat phone +heatshrink tube
  • Conductor:
    Tinned+tinned
    Tinned+crimp
    Tinned+cap
  • Color:
    RED
    BLACK
    GREEN
    BLUE
    YELLOW/GREEN
    Other
  • QTY:
    0-100
    100-200
    200-300
Quantity
-
+
Add to Favorites (0)
  • Smiery-Wire to boards 26/24/22/20/18AWG UL1007 jumper wire
  • Description

Boasting a wealth of experience in PCB board provider, we have successfully executed numerous projects and proudly display our extensive product showcase. To elevate our customer experience, we introduce Smiery, a premium value-added offering. During its validity period, Smiery enables customers to enjoy excessive credits towards future orders, providing a significant cost-saving advantage. Moreover, even after its expiration, the product retains its full worth, allowing for equitable exchange, ensuring no value is lost. Our dedication to delivering exceptional value through both our PCB expertise and Smiery underscores our commitment to fostering long-lasting, mutually beneficial partnerships with our clients.


Student PCB connection Wire to solder pads on PCBs

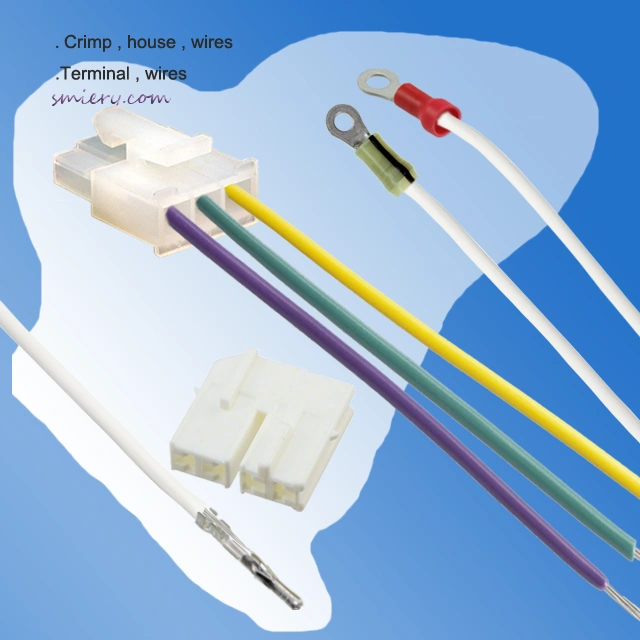

General PCB connection Wire+crimp+(house). ;wire tinned +block ;
High Tech PCB connection Other

Hook-Up Wire Index
UL 1007, UL 1569, CSA TR-64 Conductor: Solid or stranded ;Insulation:Temperature range: -20˚C to +105˚C PVC ;Applications: 300 volts ;Compliances: CSA TR-64: 90°C, 300 V
UL 1015, CSA TEW Conductor:Solid or stranded ；Insulation:Temperature range: ‑30˚C to +105˚C ；Applications: Suggested voltage rating: 600 volts ；Compliances: CSA Type TEW: 105°C, 600 V
Rubber/PVC/Polyethylene Conductor:20, 18 and 14 AWG fully annealed stranded tinned copper ；Insulation:Premium-grade, coIor-coded rubber, PVC or polyethylene；Temperature range: -40˚C to +90˚C rubber ，-30˚C to +105˚C PVC ，-60˚C to +80˚C polyethylene ，Applications: Test equipment ，Oscillopes




Conductor  Insulation
UL TEMP. °C VOLTAGE AWG STRAND TYPE Solid Diameter or Stranding Diameter AWG(mm²) Composition No/Diameter of Component Wire(mm)  Insulation Thickness Overall Diameter
1007 80 300 30 STRANDED 30 7/0.1 0.41 1.12
1007 80 300 26 STRANDED 26 7/0.16 0.41 1.3
1007 80 300 24 STRANDED 24 11/0.16 0.41 1.43
1007 80 300 22 STRANDED 22 17/0.16 0.41 1.58
1007 80 300 20 STRANDED 20 26/0.16 0.41 1.76
1007 80 300 18 STRANDED 18 41/0.16 0.41 2
1007 80 300 16 STRANDED 16 26/0.254 0.41 2.32
1569 105 300 22 STRANDED
1569 105 300 20 STRANDED
1569 105 300 18 STRANDED
1569 105 300 16 STRANDED
1569 105 300 14 STRANDED
1569 105 300 12 STRANDED
1569 105 300 10 STRANDED
1015 105 600 26 STRANDED
1015 105 600 24 STRANDED
1015 105 600 22 STRANDED
1015 105 600 20 STRANDED
1015 105 600 18 STRANDED
1015 105 600 16 STRANDED
1015 105 600 14 STRANDED
1015 105 600 12 STRANDED
1015 105 600 10 STRANDED
